GA6701 - Mini ITX Case

GA6701

•Constructed from steel and aluminum frame
•Designed for mini-ITX motherboard; it can fit the 4th Generation Intel Core i3, i5, and i7 motherboard
•Accommodate slim optical drive (ODD) and 2.5″/ 3.5″ HDD with more than 13 configurations

Add to compare

Introduction

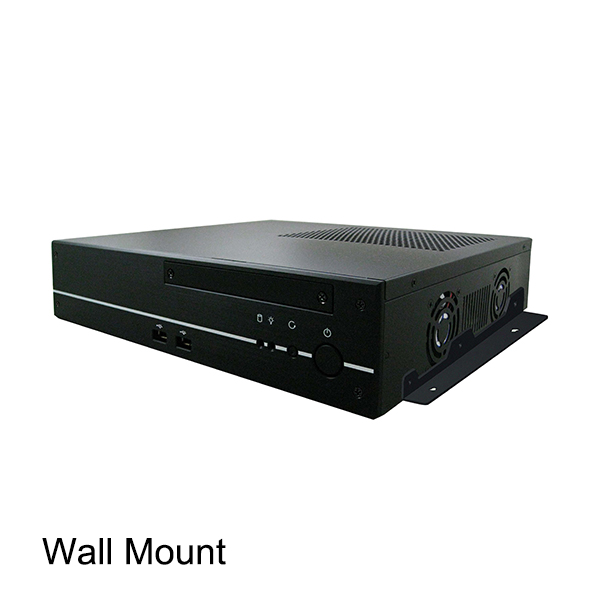

Wall Mount	Figure

w/ DC PSU	w/ 1U FlexATX PSU

G-Alantic Case for Intel Core iSeries motherboard–GA6701

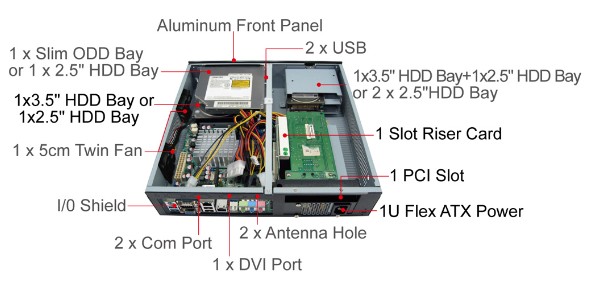

Industrial mini itx case GA6701, constructed from steel and aluminum frame, is designed for mini-ITX motherboard; it can fit the 4th Generation Intel Core i3, i5, and i7 motherboard. Accommodate slim optical drive (ODD) and 2.5″/ 3.5″ HDD with more than 13 configurations you can choose that will definitely satisfy customer’s requirements.Come up with the choice of power supply, either DC Open Frame with AC Adaptor or FlexATX power supply. Equipped with a 50x50x10mm twin fan will keep the unit from overheating. On the front aluminum panel, it has two USB ports for external peripheral connection. The rear, aside from the I/O panel, this chassis has two expansion slots for PCI/PCI-E Card, two COM holes, two WiFi holes and one DVI hole. Ideal for customers who requirehigh-performance and expansion requirements.

Ideal for your Security and Surveillance purposes as it accommodates 2x 2.5” HDD and 2X3.5” HDD at the same time. GA6701 case is also applicable for POS System, Digital Signage player and for your HTPC.

G-Alantic Company also provides a complete package of computer system.

Specifications

Form Factor	Mini-ITX Case ※MB Compatible List※
Chassis Dimensions	310(D) x 315(W) x 70(H)mm = 6.83L ,with front Aluminum front panel
Drive Bays	Flexible Combination as state form below
Front	2 x USB(V2.0) , Power/Reset SW , Power/HDD LED
Power supply	DC Open Frame 90W+AC Adapter 80W
	DC Open Frame 120W+AC Adapter 120W
	FlexATX 180W (CUL/TUV/ PSE/CB/CE/FCC, ErP, Active PFC)
PCI Slot	Standard PCI or PCI-E
System Fan	1 x 50 x 50 x 10mm Twin Fan (Right Side)
Additional Port	2 x Serial Port
	2 x Wifi Antenna
	1 x DVI
Packing	1pc/3.20kgs/4.00kgs/1.00′ 2pcs/6.80kgs/7.30kgs/2.51′
Option	Wall Mount (GA600 Wall Mount)

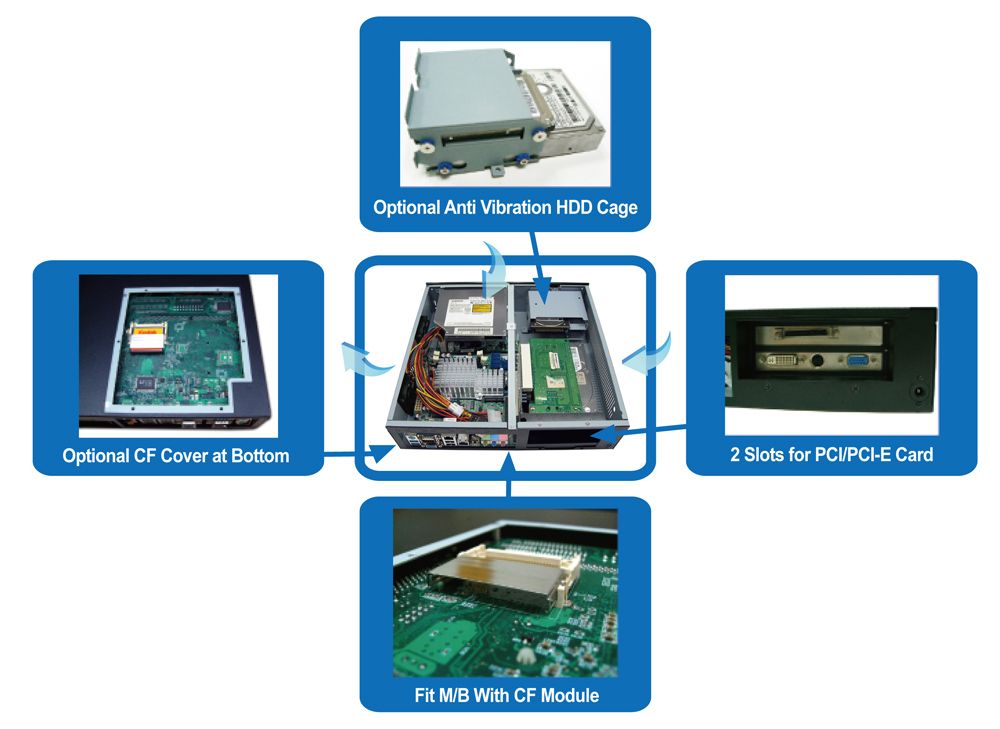

Option	Anti-vibration HDD Cage
Application	Security, i3/i5/i7 System, Gaming PC

Configurations

Accessories

Mini ITX MB D525	PCI Riser Card	2 Slots PCI Riser Card

PCI-E Riser Card	2x3.5" HDD Cage	5cm Twin FAN

Car Adaptor	DC POWER KITS	80W AC Adaptor

120W AC Adaptor	Stand Holdetr	Slim Optical Drive

SATA ODD Cable	Rack Mount	Wall Mount
