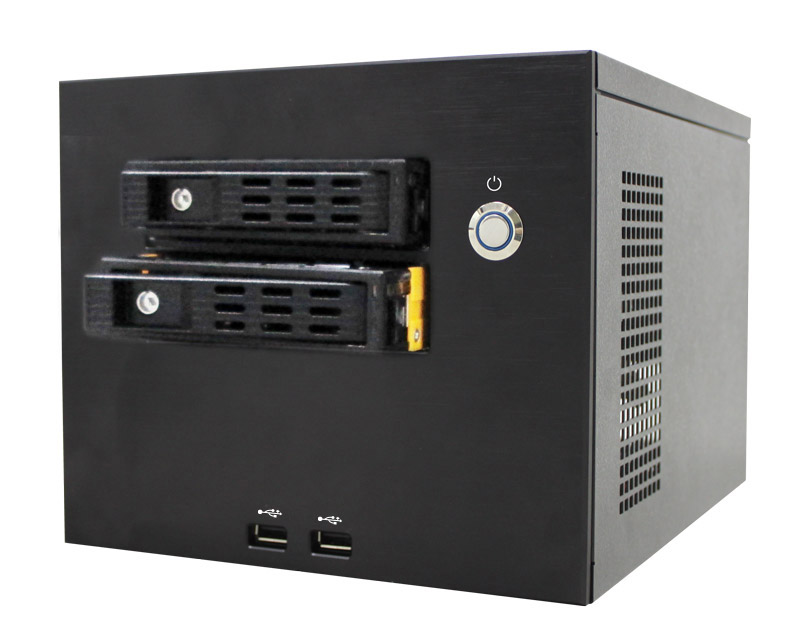

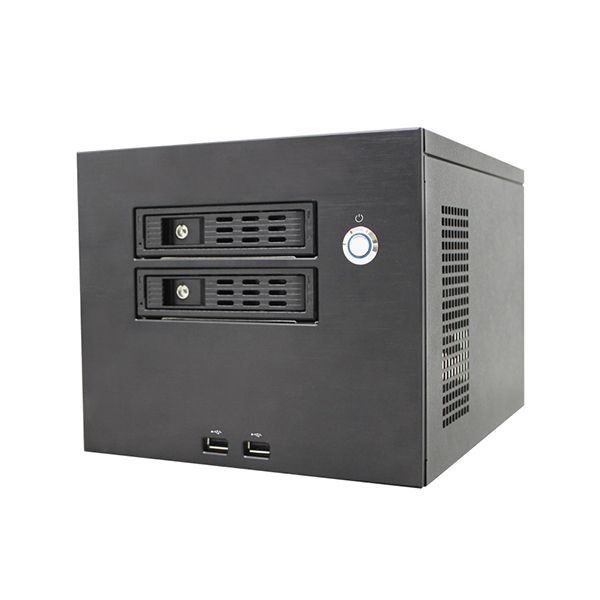

GA6902 - 2 Bays Hot Swap Mini Server ITX Case
GA6902
•Storage server, NAS, Surveillance, Hot-Swap Enclosure, Security, NVR, etc.
Add to compare
Introduction
5 bay enclosure

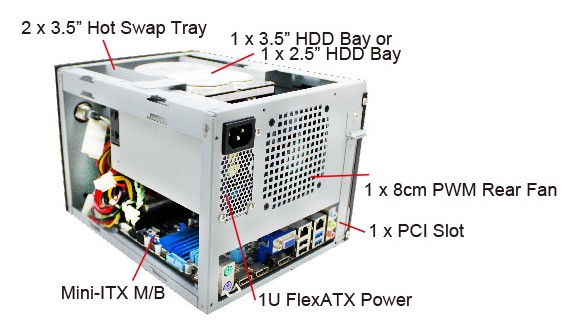

Structure
|
hot swap
|
|
|
Specifications
Form Factor
|
Mini-ITX Case
|
Dimension (mm)
|
250(D) x 200(W) x 170(H)mm =8.50L , with front panel
|
Drive Bays
|
Flexible Combination as state form below
|
Front
|
2 x USB(2.0), Stainless Power SW W/BLUE LED
|
Power supply
|
FlexATX 180W(CUL/TUV/PSE/CB/CE/FCC,ErP,Active PFC)
|
PCI Slot
|
1 x Standard PCI or PCI-E Slot
|
Additional Port
|
-
|
System Fan
|
1 x 80x 80 x 25mm Two Ball Bearing W/PWM (Single Fan)
|
Packing
|
1pc / 3.50kgs / 4.50kgs / 0.93′
|
Applications
|
|
Configurations
Storage Choices
|
Slim ODD
|
Internal
3.5″ HDD
|
Internal
2.5″ HDD
|
Hot-Swap
3.5″
|
PCI Slot
|
COM Hole
|
Wifi Hole
|
DVI Hole
|
Remarks
|
1.
|
-
|
1
|
-
|
2
|
1
|
-
|
2
|
-
|
|
2.
|
-
|
-
|
1
|
2
|
1
|
-
|
2
|
-
|
|
Accessories
Mini ITX MB D525 |
PCI Riser Card |
2 Slots PCI Riser Card |
|
|
|
PCI-E Riser Card |
2x3.5" HDD Cage |
5cm Twin FAN |
|
|
|
Car Adaptor |
DC POWER KITS |
80W AC Adaptor |
|
|
|
120W AC Adaptor |
Stand Holdetr |
Slim Optical Drive |
|
|
|
SATA ODD Cable |
Rack Mount |
Wall Mount |
|
|
|
