GA9601 - Small Cases

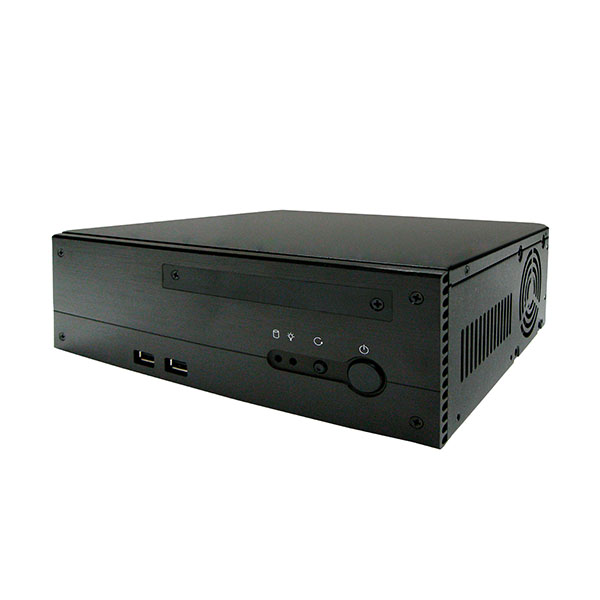

GA9601
•Fully built in high quality steel materials with aluminum front panel
•Can hold one 2.5” HDD cage and a slim optical disk drive
•The power supply unit can fit an A2D Open frame 55W or a FlexATX 180W power supply
Add to compare
Introduction

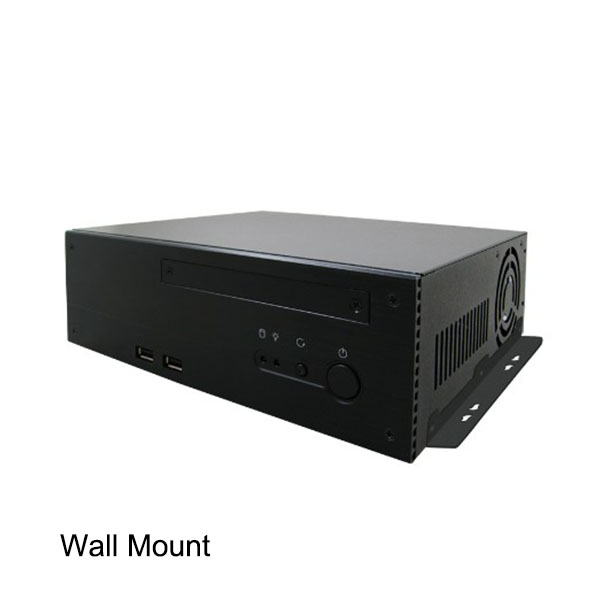

GA9601 w/Wall Mount
|

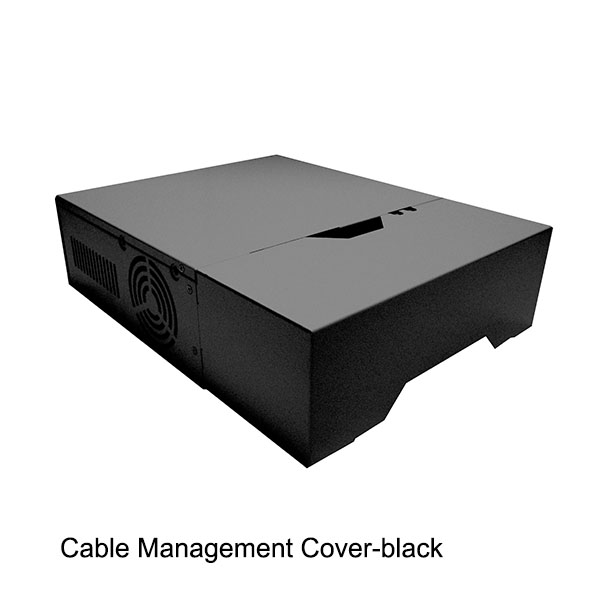

Cable Management Cover-black
|
|
|

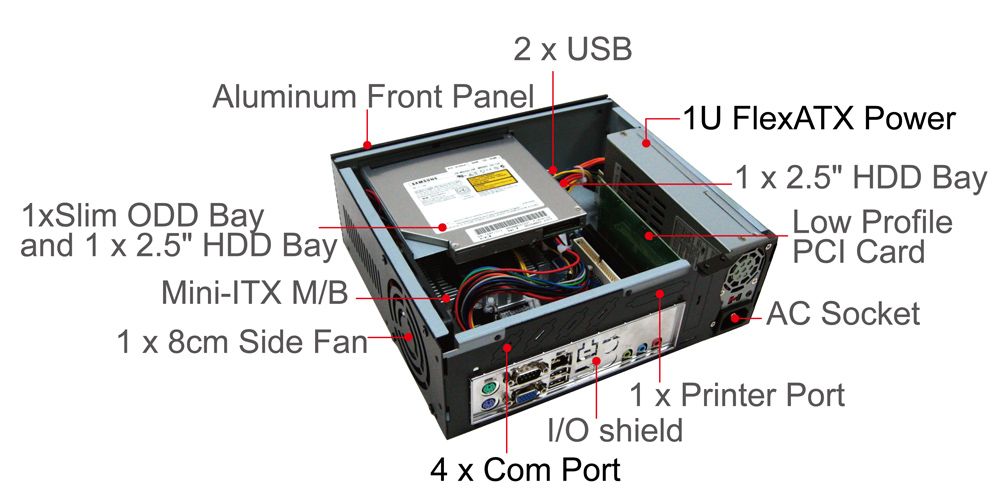

Structure w/1U FlexATX Power
|

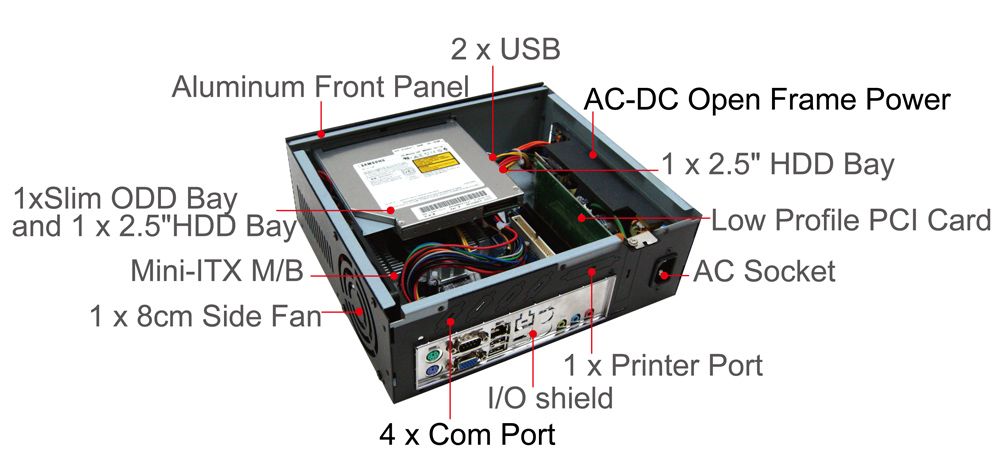

Structure w/A2D Open Frame 55W
|
|
|
Finding a computer unit for POS machine or POS PC and for KIOSK nowadays is easy. You can just get typical computer, installed the POS system, and then you have the machine you needed.
But the quality of the materials and the performance you were expecting cannot provide by other computer cases.
G-Alantic Co., one of the best manufacturers of high quality mini-itx case can provide you all the quality you need for a high performance computer case.
One of the high performing mini pc that applicable for POS PC and KIOSK that can support i3, i5, and i7 system is the GA9601.
This case has a dimension of 225 x 250 x 85mm, fully built in high quality steel materials with aluminum front panel. It can hold one 2.5” HDD cage and a slim optical disk drive. The power supply unit can fit an A2D Open frame 55W or a FlexATX 180W power supply.
An 8cm heavy duty single fan is pre-assembled on the side as system cooling system and an optional vent holes on top cover to dissipate warm air quickly.
On the rear panel, a maximum of 6 holes are ready for COM port is constructed and a slot for low profile PCI card is also made ready. There is no need for Riser Card.
A cable management cover that can be installed on the chassis rear side, which perfectly designed for POS machine, is also available. And to save some space, a pair of wall mount kit is also offered to the customers.
When using both hard drive and optical drive at the same time, it is recommended to use low profile CPU cooler due to height limit.
Specifications
Form Factor
|
Mini-ITX Case
|
Dimension (mm)
|
225(D) x 250(W) x 85(H)mm = 4.78L ,with Aluminum front panel
|
Drive Bays
|
Flexible Combination as state form below
|
Front
|
2 x USB(V2.0) , Power/Reset SW , Power/HDD LED
|
Power supply
|
FlexATX 180W (CUL/TUV/ PSE/CB/CE/FCC, ErP, Active PFC)
A2D Open Frame 55W
|
PCI Slot
|
Low Profile PCI or PCI-E
|
Additional Port
|
4 x Serial Port , 1 x LPT Port
6 x Serial Port
|
System Fan
|
1 x 80 x 80 x 15mm Single Fan (Side)
|
Packing
|
1pc/4.00kgs/4.50kgs/0.88′ (With CMC)
|
Options
|
Wall Mount Kits (GA9601 Wall Mount)
Vent Holes on top cover
|
Applications
|
|
Configurations
Storage Choices
|
Slim ODD
|
3.5″ HDD
|
2.5″ HDD
|
3.5″
Exposed
|
PCI
|
COM Hole
|
Wifi Hole
|
LPT Hole
|
CF in Bottom
|
Remarks
|
1.
|
1
|
-
|
1
|
-
|
1
|
4
|
-
|
1
|
Y
|
ODD&HDD use simultaneously,
recommend Low Profile CPU Cooler
|
2. |
1 |
- |
1 |
- |
1 |
6 |
- |
- |
Y |
Accessories
Mini ITX MB D525 |
PCI Riser Card |
2 Slots PCI Riser Card |
|
|
|
PCI-E Riser Card |
2x3.5" HDD Cage |
5cm Twin FAN |
|
|
|
Car Adaptor |
DC POWER KITS |
80W AC Adaptor |
|
|
|
120W AC Adaptor |
Stand Holdetr |
Slim Optical Drive |
|
|
|
SATA ODD Cable |
Rack Mount |
Wall Mount |
|
|
|
Images
GA9601-Cable Management Cover-black.jpg

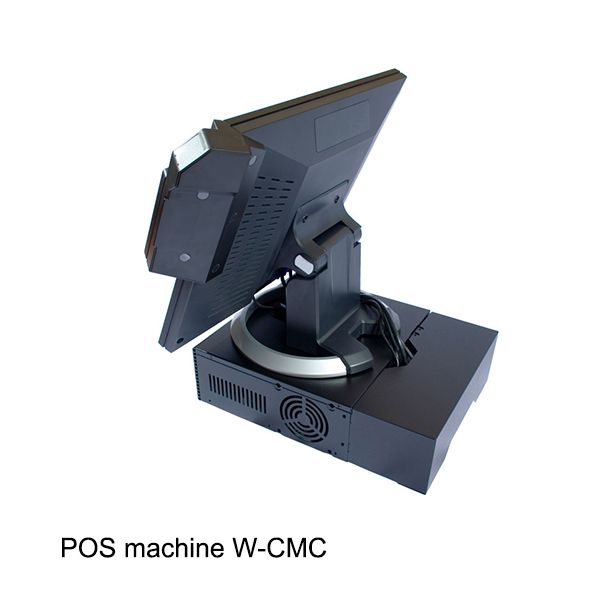

GA9601-POS machine W-CMC.jpg
