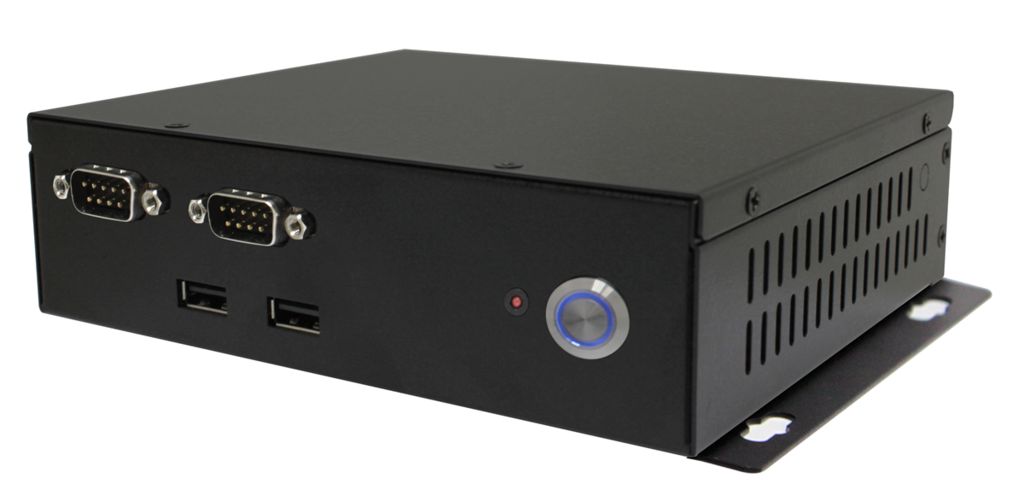

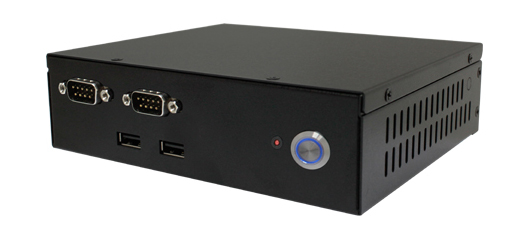

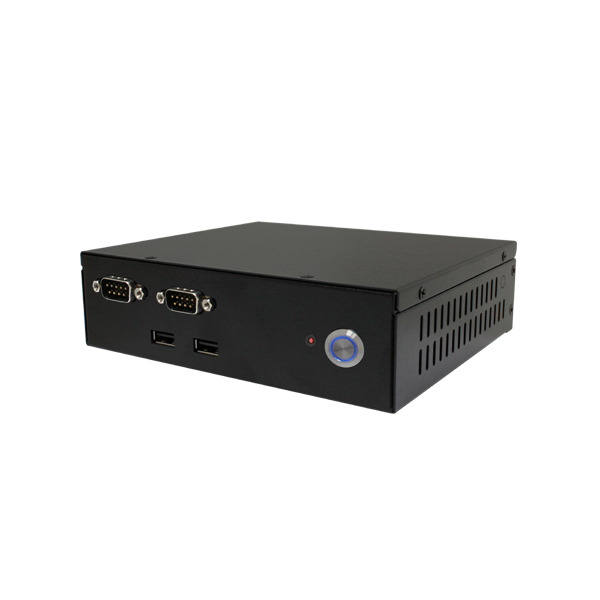

GA8511 - 3.5″SBC Fanless Embedded Mini PC
GA8511
- Intel ® Celeron N3150 Processor
- Supports DDR3L 1600MHz, 1 x SO-DIMM, up to 8GB System Memory
- Dual Display (HDMI, LVDS)
- 1 x HDMI, 1 x D-Sub, 1 x HDMI
- 1 x mSATAIII (6.0Gb/s)
- 4 x USB 3.0 + 2 x USB 2.0
- 3 x COM, 2 x Mini-PCIe
- 1 x 12~26V DC-in Jack
Add to compare
Introduction

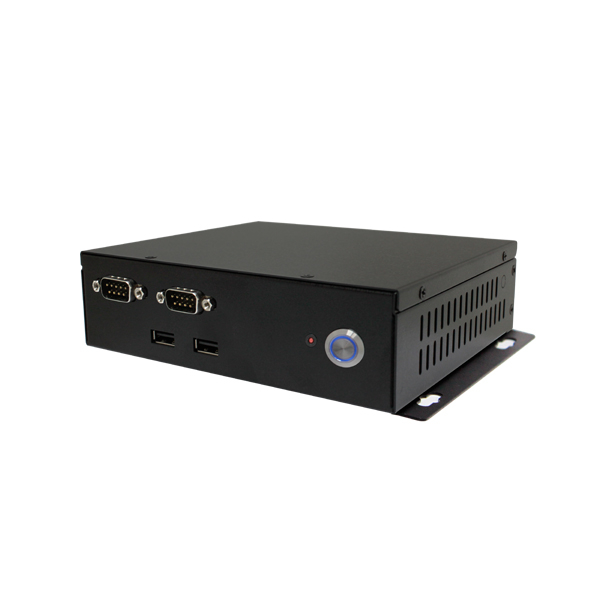

Wall Mount
Specifications
| Model |
GA8511
|
|
Processor
|
CPU(Core)
|
1.6GHz Quad Core
|
|
CPU/TDP
|
Celeron N3150 / 6W
|
|
BIOS
|
Insyde 64Mbit SPI Flash ROM
|
|
Memory
|
Spectification (SO-DIMM)
|
1 x DDR3L-1333 / 1600
|
|
Max. Capacity
|
8GB
|
|
Stroge
|
2.5″ Drive
|
1 x SATAIII (6.0Gb/s)
|
|
mSATA
|
1 x Full Size Mini-PCIe(Shared With mSATA)
|
|
Ethernet
|
LAN Gigabit Controller
|
Realek 8119I
|
|
Expansion
|
Mini-PCIe/mSATA
|
1 x Full Size Mini-PCIe(Shared With mSATA)
|
|
Mini-PCIe
|
1 x Half Size Mini-PCIe
|
|
Rear I/O
|
VGA
|
N/A
|
|
HDMI
|
1 x HDMI
|
|
COM
|
1 x COM
|
|
Line-Out
|
N/A
|
|
Mic-In
|
N/A
|
|
USB
|
4 x USB 3.0
|
|
LAN Port
|
2 x RJ-45 (10 / 100 / 1000 Mbps)
|
|
System Power Input
|
DC + 12~26V Power Input + AC Adaptor 80W
|
|
Antenna
|
2 x Antenna Holes
|
|
Front Bezel
|
Power Buttom
|
1 x Stainless Power Button W/Cool Blue LED
|
|
Reset Buttom
|
N/A
|
|
Power LED
|
1 x Stainless Power Button W/Cool Blue LED
|
|
HDD LED
|
1 x LED for SATA HDD Status
|
|
COM
|
2 x COM
|
|
USB
|
2 x USB 2.0
|
|
Watchdog Timer
|
Output & Interval
|
Output : System Reset, Interval : Programable 0~25 sec/min
|
|
Temperature
|
Operating
|
0°C ~ 60°C
|
|
storge
|
-20°C ~ 75°C
|
|
Options
|
Module
|
WiFi Module /Antenna Kit
|
|
Mount Kit
|
Wall Mount Kit / VESA Mount Kit
|
|
Memory
|
1 x 4GB DDR3L-1333
|
|
Storage
|
1 x mSATA
|
|
Dimension
|
(W) x (D) x (H)
|
160(D) x 135(W) x 50(H) mm = 1.08L
|
Accessories
| Mini ITX MB D525 |
PCI Riser Card |
2 Slots PCI Riser Card |
 |
 |
 |
| PCI-E Riser Card |
2x3.5" HDD Cage |
5cm Twin FAN |
 |
 |
 |
| Car Adaptor |
DC POWER KITS |
80W AC Adaptor |
 |
 |
 |
| 120W AC Adaptor |
Stand Holdetr |
Slim Optical Drive |
 |
 |
 |
| SATA ODD Cable |
Rack Mount |
Wall Mount |
 |
 |
|
