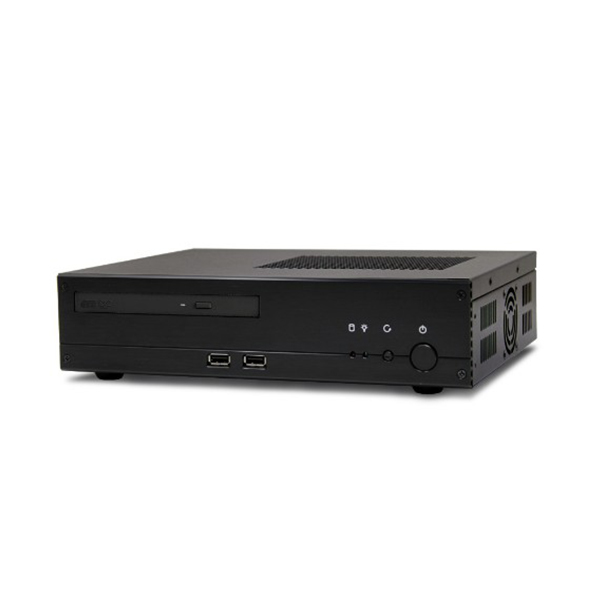

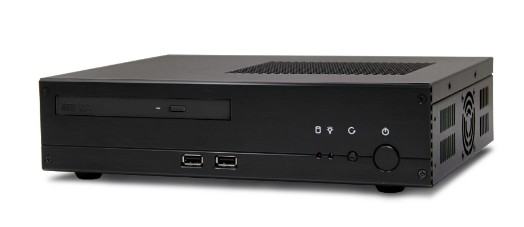

GA6605iBK A Type
|

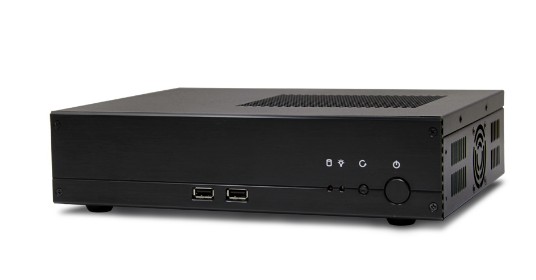

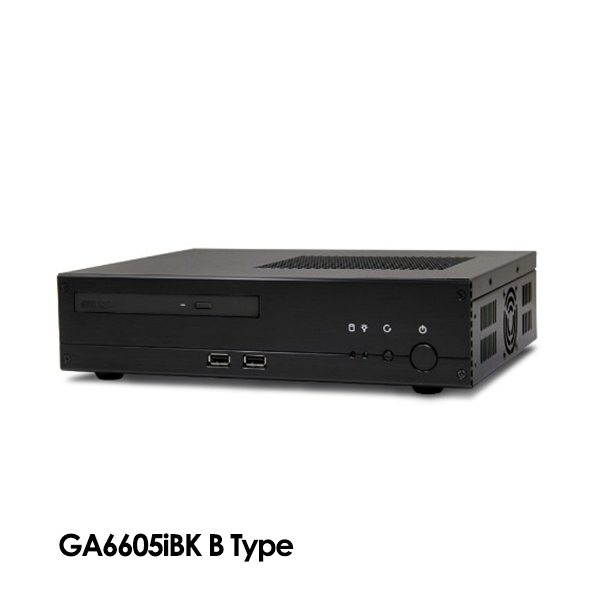

GA6605iBK B Type
|
|
|
|
|

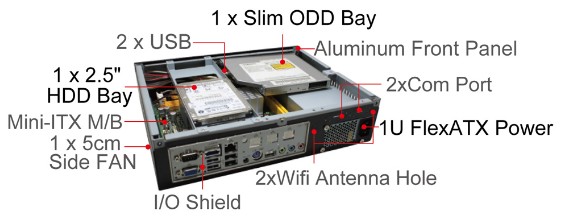

GA6605 B w/1U FlexATX power
|

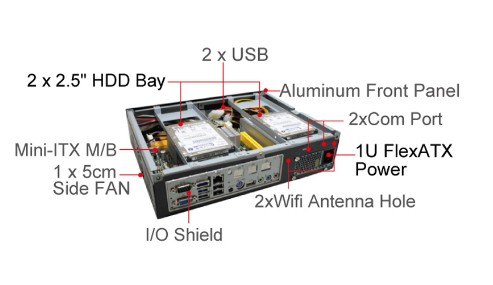

GA6605A w/1U FlexATX power
|
|
|
|
|

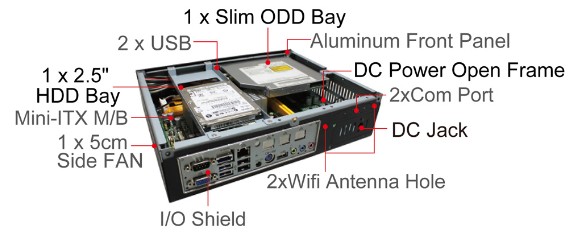

GA6605B w/DC-DC PSU
|

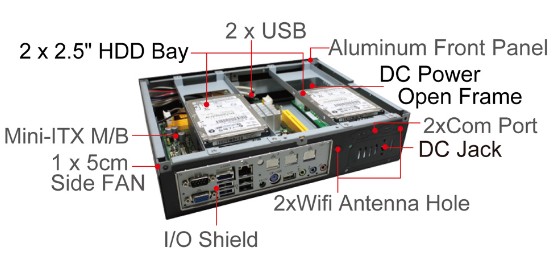

GA6605A w/DC-DC PSU
|
|
|
|
|

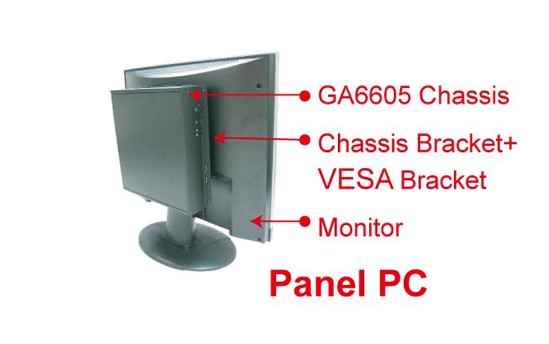

Panel PCPanel PC
|

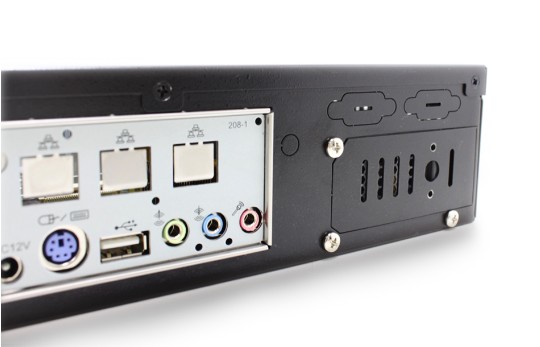

Rear Review
|
|
|
|
Another multi-function mini-ITX computer case of G-Alantic Co. is the GA6605.
This mini pc is applicable as security server, as a typical personal computer, for gaming and POS PC in a business establishment.
It has a maximum capacity of up to three 2.5” storage drive that can be easily installed, change or remove.
Another distinctive feature of this mini computer case is the capability to accommodate a slim optical drive despite of its small dimension. Though, assembling optical drive on the chassis will limit the space of storage drive that can be installed.
A set of DC power supply with AC adaptor are also available depending on the power set up. We have, 90W DC open frame + AC adaptor, 120W DC open frame + 120W AC adaptor and 180W FlexATX power supply that customers can choose from.
With an easy and quick access on two USB 2.0 port and power button at the front panel.
Rear panel has two COM port and WIFI holes ready, and a detachable cover for AC to DC power supply. A hole for parallel port is also optional to construct if necessary.
For cooling solution, a noise-free and quiet 5cm single fan is installed on the side of the chassis; vent holes are also constructed on both sides and top cover to dissipate hot air quickly.
A variety of mounting kits are also supplied depending on your set up. We have a stand holder, a pair of wall mount kits, and a set of VESA mount (VESA bracket + Chassis bracket).
The simple but elegant design and high quality materials use, made this mini –ITX case one of the hottest, best seller and in-demand product of G-Alantic Co.
Specifications
| Form Factor |
Mini-ITX Case
※MB Compatible List※ |
| Chassis Dimensions |
215 (D) x 275 (W) x 65 (H)mm =3.84L ,with Aluminum front panel |
| Drive Bays |
Flexible Combination as state form below |
| Front |
2 x USB(V2.0) , Power/Reset SW , Power/HDD LED |
| Power supply |
DC Open Frame 90W+AC Adapter 80W |
| DC Open Frame 120W+AC Adapter 120W |
| FlexATX 180W (CUL/TUV/ PSE/CB/CE/FCC, ErP, Active PFC) |
| System Fan |
1 x 50 x 50 x 10mm Single Fan (Side) |
| Additional Port |
2 x Serial Port for A2D POWER |
| 2 x Serial Port for DC POWER |
| Packing |
1pc/2.50kgs/3.00kgs/0.52′ |
| 3pcs/9.00kgs/10.00kgs/1.80′ |
| Options |
Wall Mount (GA700 Wall Mount) |
| VESA Mount (VESA Bracket B + Chassis Bracket A) |
| Stand Holder |
| Printer Port |
| Application |
Security,Mini PC,POS PC,Gaming PC |
Configurations
|
Storage Choices
|
|
|
|
|
|
CF
Buttom |
Remarks |
|
1.
|
-
|
3
|
1(option)
|
2
|
2
|
Y
|
|
|
2.
|
1
|
1
|
1(option)
|
2
|
2
|
Y
|
Recommend CPU on Board |
Accessories
| Mini ITX MB D525 |
PCI Riser Card |
2 Slots PCI Riser Card |
 |
 |
 |
| PCI-E Riser Card |
2x3.5" HDD Cage |
5cm Twin FAN |
 |
 |
 |
| Car Adaptor |
DC POWER KITS |
80W AC Adaptor |
 |
 |
 |
| 120W AC Adaptor |
Stand Holdetr |
Slim Optical Drive |
 |
 |
 |
| SATA ODD Cable |
Rack Mount |
Wall Mount |
 |
 |
|
