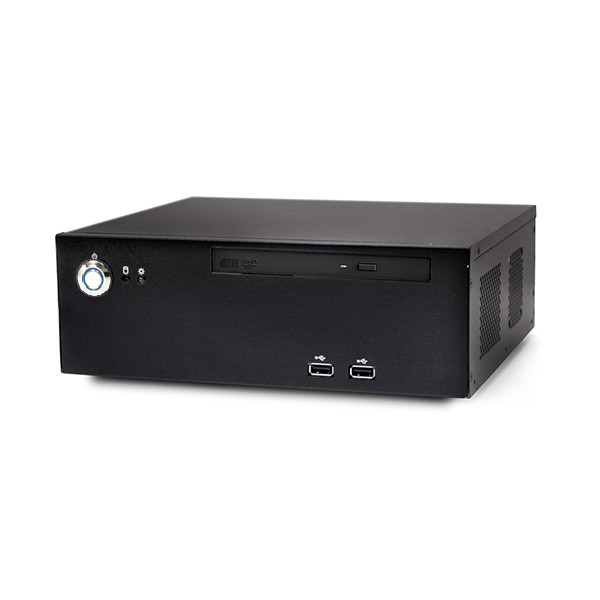

GA6602 - Mini ITX for POS and KIOSK system
GA6602
•Highly recommend for applications like POS and KIOSK system
•The whole structure is built from high quality and durable steel materials
•Pre-assembled with slim optical disk drive bay and 2.5” drive bay
•A set of 5cm twin fan and 1U FlexATX 180W AC power supply is also installed on the chassis
Add to compare
Introduction

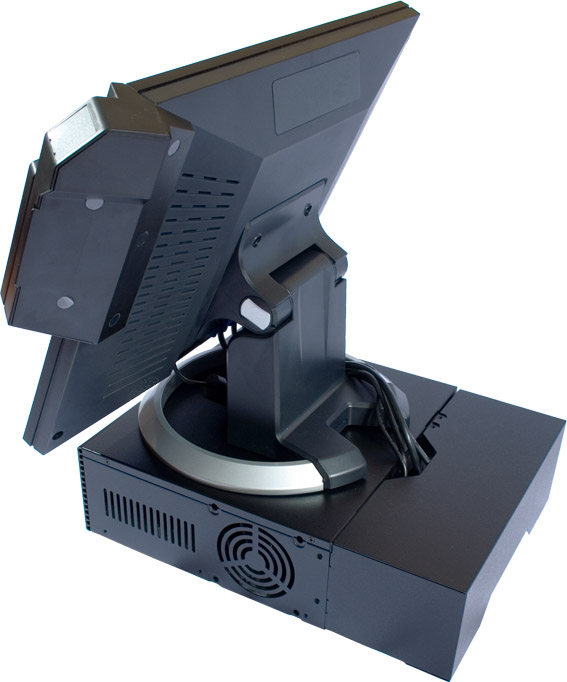

G-Alantic released a mini ITX case GA6602 that highly recommend for applications like POS and KIOSK system. Like most POS machine which monitor is set on top of the chassis, this unit is designed to suit on this application. The whole structure is built from high quality and durable steel materials. And the bracket for optical disk drive and hard drive inside the chassis increases the support to hold even a heavy monitor.

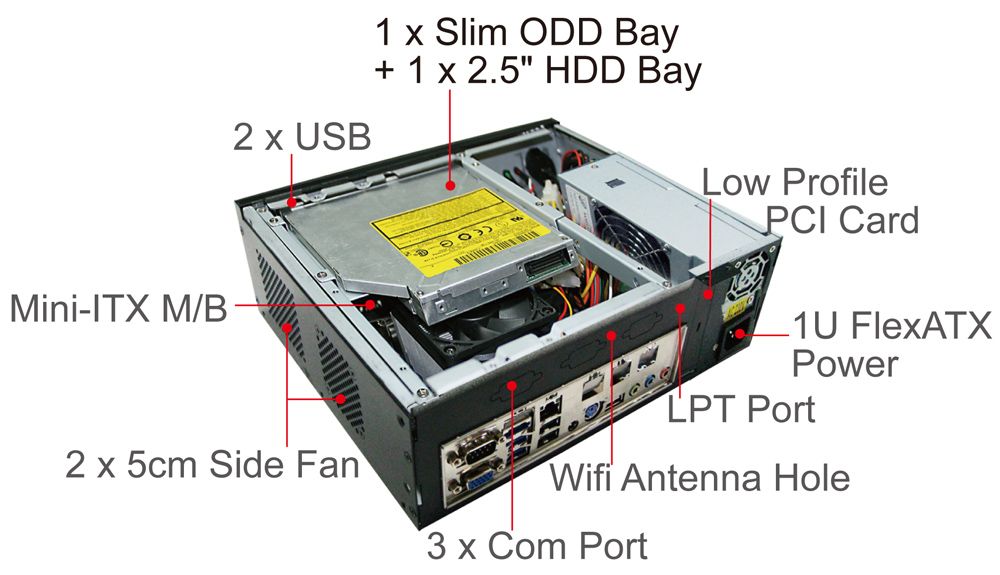

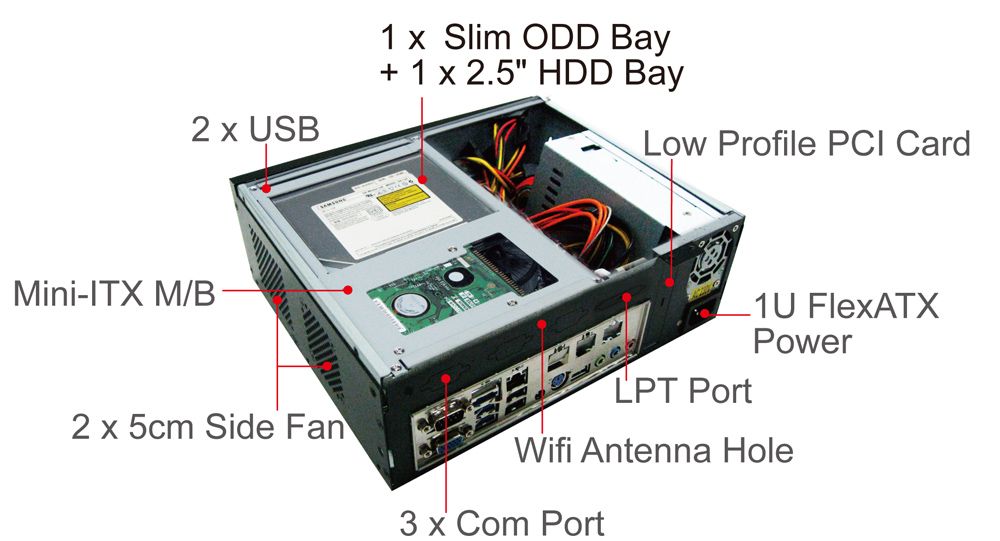

GA6602 is pre-assembled with slim optical disk drive bay and 2.5” drive bay. A set of 5cm twin fan and 1U FlexATX 180W AC power supply is also installed on the chassis. The rear side has three COM port ready, and standby holes for wireless antenna and for LPT port. A slot for low profile PCI card is also constructed beside the AC socket.
A ventilation holes on the top cover is also added to increase and optimize the cooling process of the unit.
Specifications
| Form Factor |
Mini-ITX Case |
| Model |
GA6602iBK |
| Chassis Dimensions |
215 (D) x 250 (W) x 85 (H)mm = 4.56 L , with front panel |
| Drive Bays |
Flexible Combination as state form below |
| Front |
USB(V2.0) x 2 , Power SW , Power/HDD LED |
| Power supply |
FlexATX 180W (CUL/TUV/ PSE/CB/CE/FCC, ErP, Active PFC) |
| PCI Slot |
Low Profile PCI or PCI-E |
| System Fan |
1 x 50 x 50 x 10mm Twin Fan (Side) |
| 1 x 50 x 50 x 10mm Single Fan (Side) |
| Additional Port |
3 x Serial Port (Max) |
| Packing |
1pc/ 2.50 kgs/3.00 kgs/ 0.84 ‘ |
| Options |

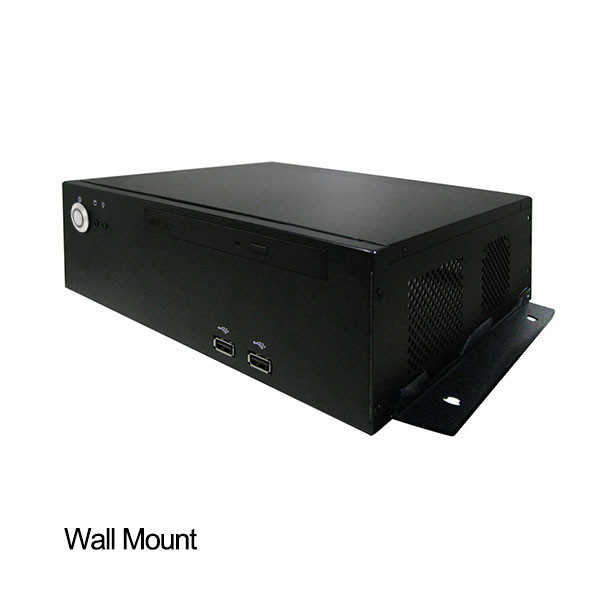

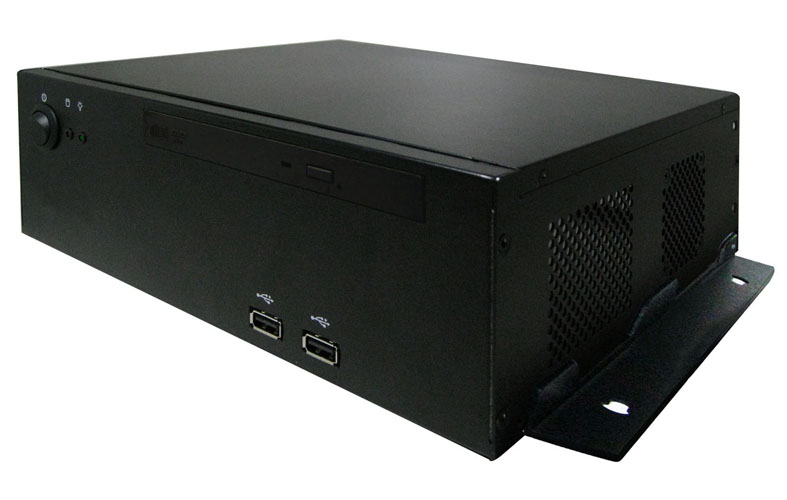

Wall Mount Kits ( GA700 Wall Mount)

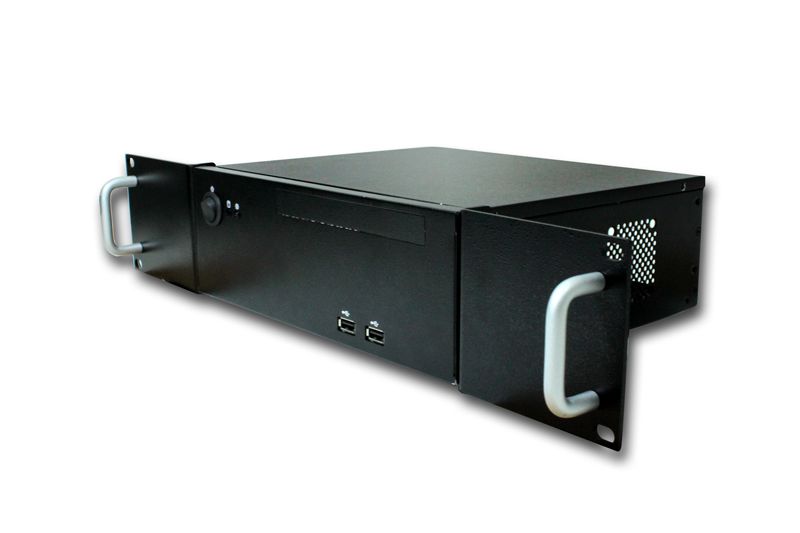

Rack Mount Kits (GA6200 Rack Mount)
Vent Holes on top cover
CPU Cooler: Low profile ─ GA6602A , GA6602C w/3.5″ HDD Bay
Intel Standard : Low profile ─ GA6602B , GA6602C w/2.5″ HDD Bay |
| Application |
i3/i5/i7 System , KIOSK , POS PC |
Configurations
|
Storage Choices
|
Slim ODD
|
3.5″ HDD
|
2.5″ HDD
|
PCI
|
Printer Port
|
COM Hole
|
Wifi Hole
|
CF
|
Remarks
|
|
Bottom
|
|
1.
|
1
|
-
|
1
|
1
|
1
|
3
|
2
|
Y
|
A Type
|
|
2.
|
-
|
-
|
2
|
1
|
1
|
3
|
2
|
Y
|
|
3.
|
1
|
-
|
1
|
1
|
1
|
3
|
2
|
Y
|
B Type
|
|
4.
|
-
|
1
|
-
|
1
|
1
|
2
|
2
|
Y
|
C Type
|
Accessories
| Mini ITX MB D525 |
PCI Riser Card |
2 Slots PCI Riser Card |
 |
 |
 |
| PCI-E Riser Card |
2x3.5" HDD Cage |
5cm Twin FAN |
 |
 |
 |
| Car Adaptor |
DC POWER KITS |
80W AC Adaptor |
 |
 |
 |
| 120W AC Adaptor |
Stand Holdetr |
Slim Optical Drive |
 |
 |
 |
| SATA ODD Cable |
Rack Mount |
Wall Mount |
 |
 |
|
Images

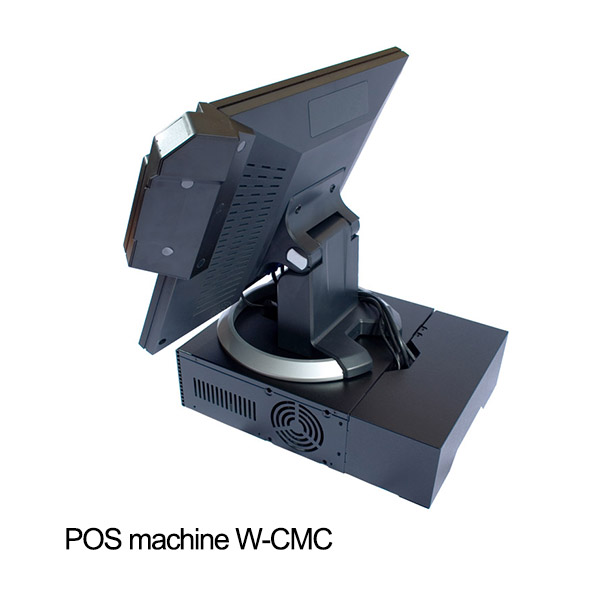

POS machine W-CMC-1.jpg
