GA6201 - Mini ITX PC Case Desktop Computer

GA6201

•Very thin and small in size
•Fit two USB ports for external connections in the front panel
•WFi holes for setting up WLan Antenna of wireless connectivity
•A variety of colors for front panel and mounting options

Add to compare

Introduction

Structure w/MB	Structure w/MB

GA6201 w/Wall Mount	GA6201 w/VESA

GA6201iBK w/Stand Holder	GA6201iRD w/Stand Holder

GA6201iBK	200(D) x 185(W) x 40(H)mm

Back review-Flexible IO solution	Various Colors

GA6201 w/COM Hole	VESA SCREWS TYPE

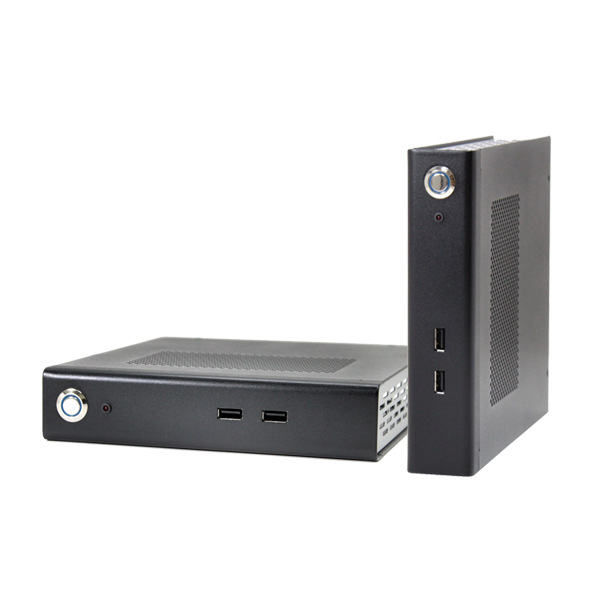

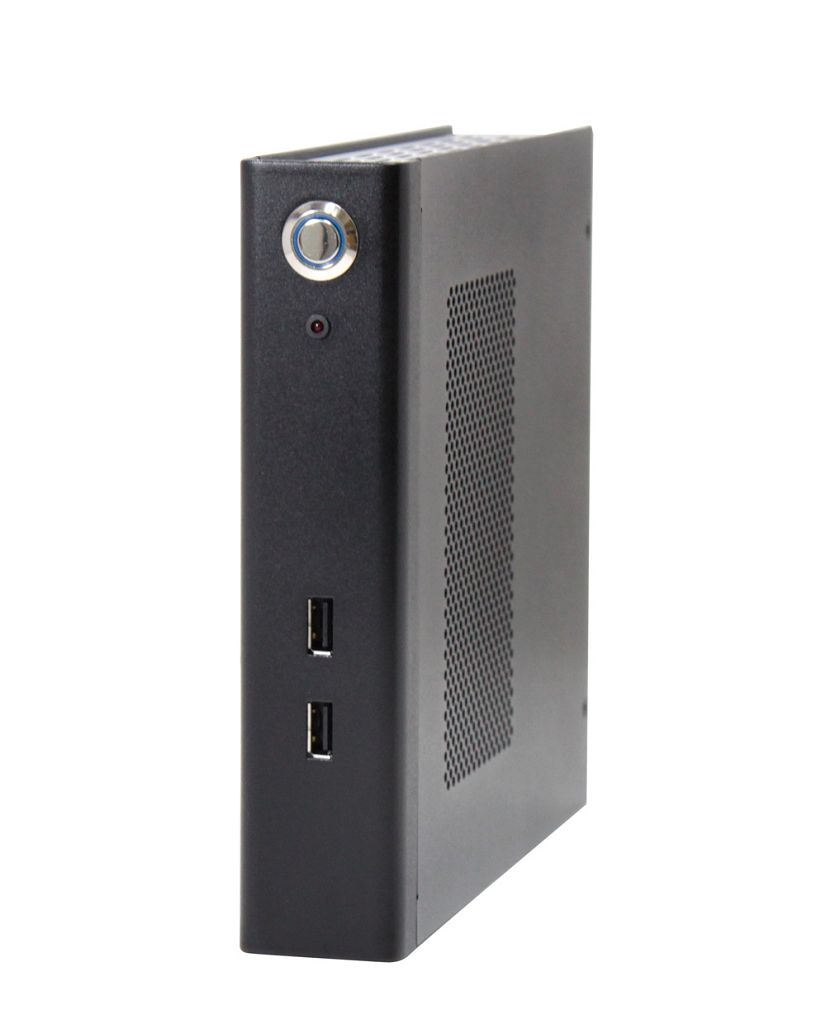

GA6201 is a G-Alantic’s masterpiece for version of Thin Client. GA6201 is one of the mini itx cases that G-Alantic has designed and customized to the market requirements and to deliver the performance of a traditional pc can’t reach. This GA6201 Thin Client fanless chassis is designated to fit all brands of motherboard from low profile which you can find in the market nowadays. One of the biggest advantages of our GA6201 thin client case from other thin client is that, our GA6201 can accommodate one 2.5″ SSD/HDD to install your software, applications and store your data. Basically, GA6201 is not only designed to perform as a thin client, it is also applicable for variable application like, Digital Signage, POS PC, Medical Usage and even Media Center. This Low Profile Mini-ITX case fanless system is for long life span, noise-free and higher system reliability.

One of the common demands and concern of the customer is the reliability and durability of the product. How long will this last? That is why we constructed GA6201 case from high quality steel materials to provide customers a high and long-term performance.

GA6201 is very thin and small in size with a dimensions only of 200 x 185 x 40mm (length, width, height respectively),but good enough to fit two USB ports for external connections in the front panel, also available with one Com Port at the front bezel. There are WiFi holes for setting up WLan Antenna of wireless connectivity. Thin Client GA6201 offers a variety of colors for front panel and mounting options; Wall Mount,VESA Mount and stand holder.

Specifications

Form Factor	Mini-ITX Case
Model	GA6201iBK Front Color: BLACK GA6201iSL Front Color: SILVER GA6201iRD Front Color: RED GA6201iGN Front Color: GREEN (Top & Bottom Color:Black ; Frame of both sides: Silver)
Form Factor	Mini-ITX Case
M/B Type
	Thin Mini-ITX M/B
	other brands Low Profile Motherboard ※MB Compatible List※
Dimension (mm)	200(D) x 185(W) x 40(H)mm = 1.48L , with front panel
Drive Bays	Flexible Combination as state form below
Front	2 x USB(V2.0) , Stainless Power SW W/BLUE LED/ HDD LED
Power Supply	80W 12V AC adapter 120W 12V AC adapter 120W 19V AC adapter 180W 19V AC adapter
System Fans	If requires for i3/i5/i7 processor
Packing	1pc / 1.50kgs / 2.00kgs/0.32′
Packing	3pcs/ 8.00kgs/ 9.00kgs/ 1.62′
Options	Stand Holder
	Wall Mount
	VESA Mount (VESA Bracket B + Chassis Bracket A)
	1 x Front Panel COM Port Hole
	CPU Cooler
	Power Cable (200mm Length)
	SATA 3 Low Profile Cable for Data (200mm Length)
Application	Thin Client, Digital Signage, i3/i5/i7 Mini system

Configurations

Storage Choices	Slim ODD	3.5″ HDD	2.5″ HDD	3.5″ Exposed	PCI	COM Hole	Wifi Hole	DVI Hole	Remarks
1.	-	-	1	-	-	1 (option)	3	-	M/B must DC IN

Accessories

Mini ITX MB D525	PCI Riser Card	2 Slots PCI Riser Card

PCI-E Riser Card	2x3.5" HDD Cage	5cm Twin FAN

Car Adaptor	DC POWER KITS	80W AC Adaptor

120W AC Adaptor	Stand Holdetr	Slim Optical Drive

SATA ODD Cable	Rack Mount	Wall Mount
