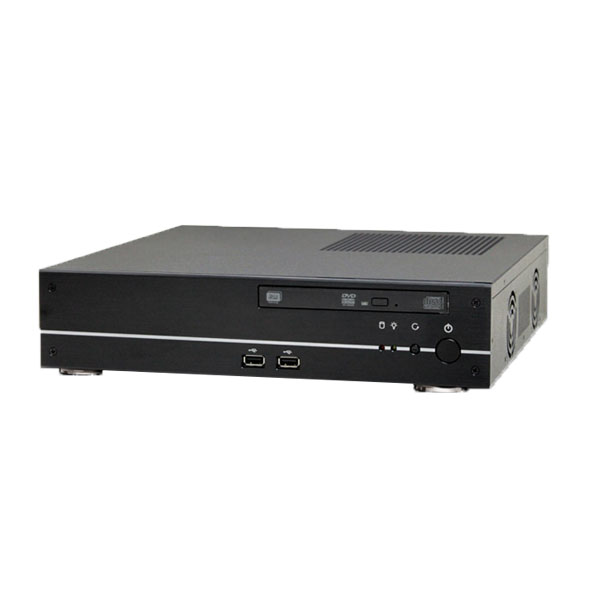

Micro ATX case GA3102 is the newest design of G-Alantic Company for Standard micro ATX form factor. For those that are looking for something a little different in usual mATX case, GA3102 could be considered as a great choice. With a dimensions of 400x350x90mm (depth, width, height) respectively, this case can accommodate either four 3.5” HDDs, slim ODD or two 3.5” HDDs, two 2.5” HDDs. Lots of combination can be adopted in this GA3102 model.
One of the concerns in building a computer system is the capability of the unit to handle the heat produced inside the chassis. And base on the dimensions and with all the components insides, generally, one can make a few assumption that the smaller the case are, the faster the heat can build up inside. That is why, GA3102 top cover and sides of the chassis was designed with vent holes to dissipate hot air and two 6cm fan to sustain the cool air inside the chassis.
With its capability of housing maximum of five hard drives, this chassis is applicable as a Security server, mini server or as IPC server.It also supports all microATX motherboard available in the market, including Intel i3, i5, and i7 system.
Specifications
|
Form Factor
|
GA3102MBK MicroATX Case
|
|
Dimension (mm)
|
400(D) x 350(W) x 90(H)mm=12.6L, with Aluminum front panel
|
|
Drive Bays
|
Flexible Combination as state form below
|
|
Front
|
2 x USB(V2.0), Power / Reset SW, Power / HDD LED
|
|
Power supply
|
MicroATX(SFX)400W(CUL/TUV/PSE/CB/CE/FCC, ErP,Active PFC)
|
|
PCI Slot
|
4 x Low Profile PCI or PCI-E
|
|
Additional Port
|
2 x Serial Port
|
|
System Fan
|
2 x 60 x 60 x 15mm Single Fan(Side)
|
|
Packing
|
1PC / 3.50Kgs / 5.00Kgs / 1.70’
|
|
Options
|
N/A
|
|
Applications
|
|
Configurations
|
Storage Choices
|
Slim ODD
|
3.5″ HDD
|
2.5″ HDD
|
3.5″
Hot Swap
|
PCI
|
COM Hole
|
Wifi Hole
|
DVI Hole
|
Remarks
|
|
1.
|
1
|
4
|
-
|
-
|
4
|
2
|
2
|
-
|
-
|
| 2. |
1 |
2 |
2 |
- |
4 |
2 |
2 |
- |
- |
| 3. |
- |
4 |
1 |
- |
4 |
2 |
2 |
- |
- |
Accessories
| Mini ITX MB D525 |
PCI Riser Card |
2 Slots PCI Riser Card |
 |
 |
 |
| PCI-E Riser Card |
2x3.5" HDD Cage |
5cm Twin FAN |
 |
 |
 |
| Car Adaptor |
DC POWER KITS |
80W AC Adaptor |
 |
 |
 |
| 120W AC Adaptor |
Stand Holdetr |
Slim Optical Drive |
 |
 |
 |
| SATA ODD Cable |
Rack Mount |
Wall Mount |
 |
 |
|
