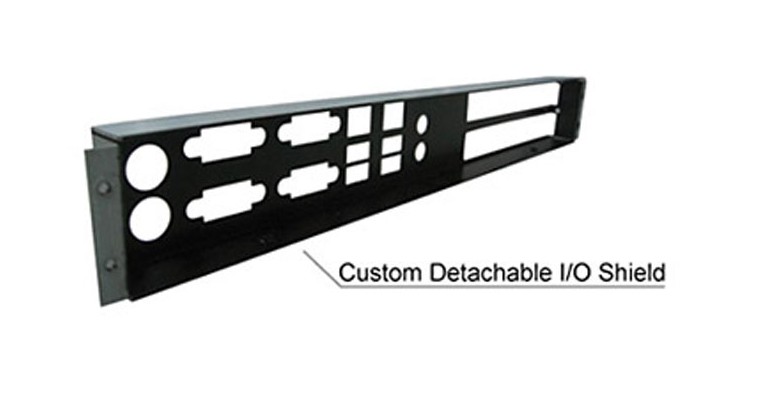

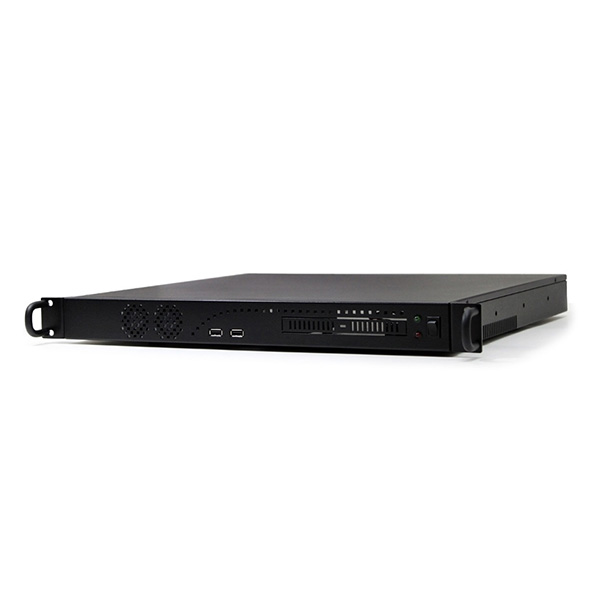

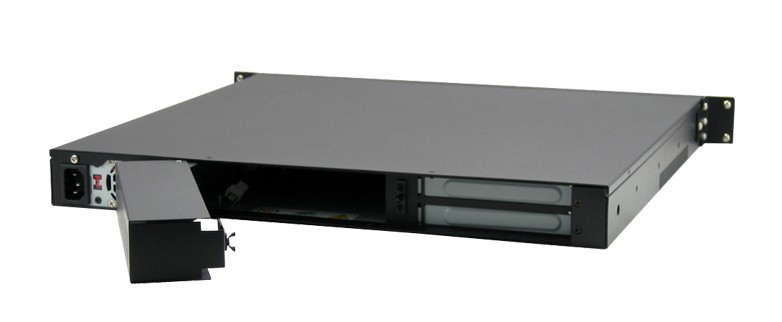

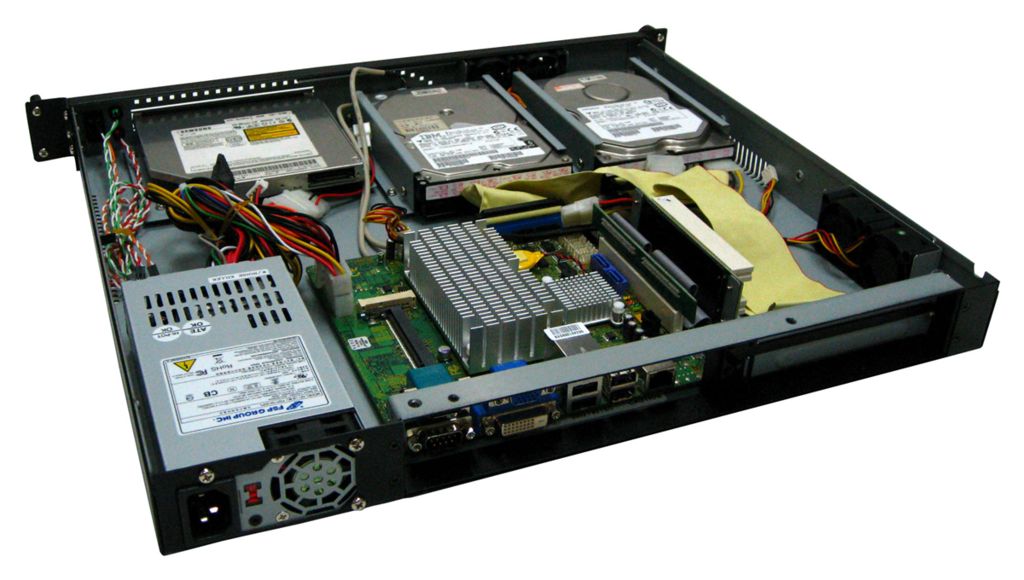

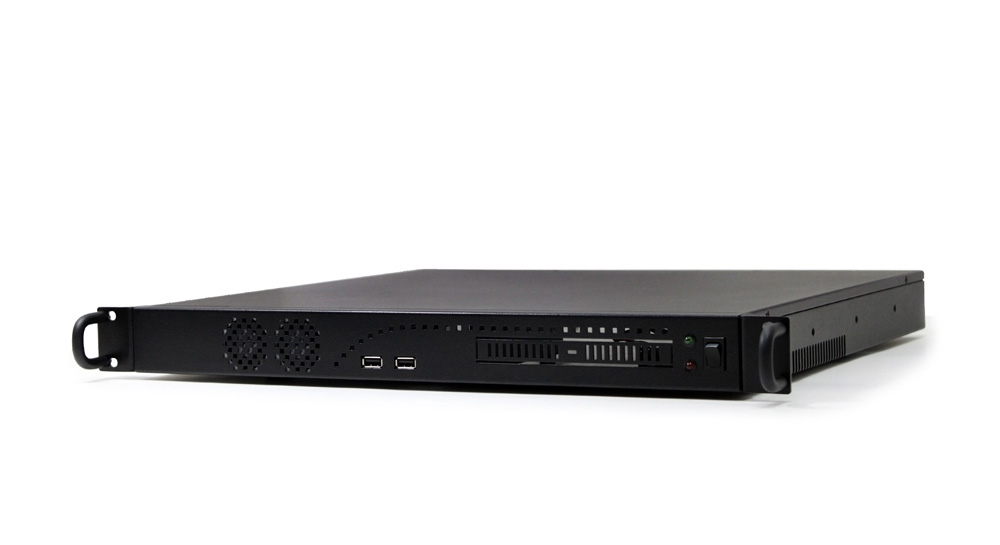

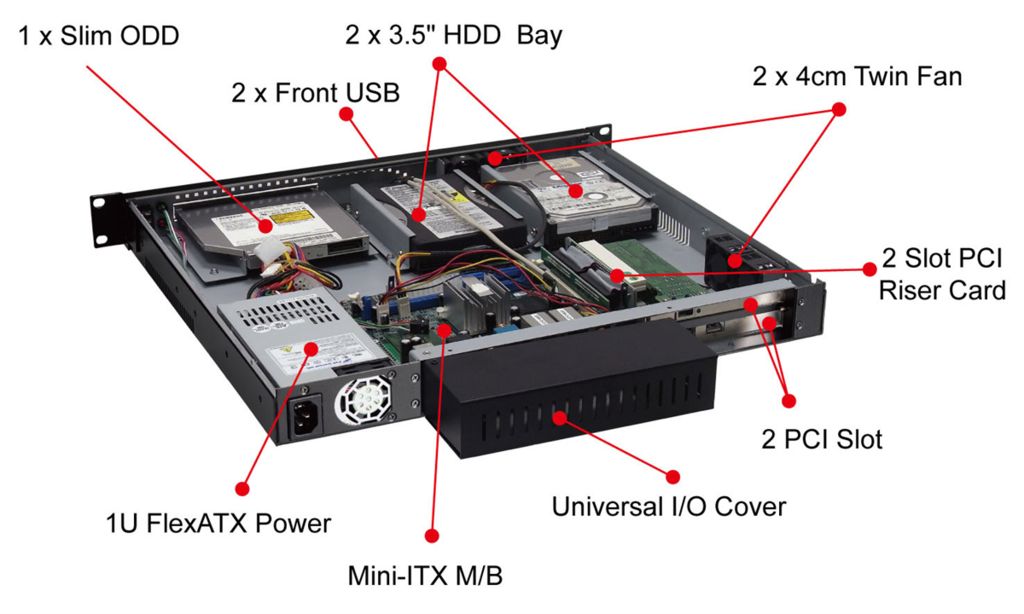

G-Alantic Company not only builds mini ITX cases, we also assembled rack mount cases that commonly use for server applications. One of the rack mount model is the GA160.It is a 1U 19” rack mount chassis that has a dimension of 400(D) x 430(W) x 44.45(H) mm. fully built in high quality steel materials to ensure the longevity service of the product.  This chassis can accommodate two 3.5” HDD, and it is capable of housing a slim optical disk drive. Aside from that, a standard PCI or PCIE slot is also constructed at the rear panel, and two USB 2.0 port that are accessible at the front panel. For cooling solution, it has two sets of 4cm twin fan that was assembled at the front and side of the case. And to optimize the cooling system, consumers have an option to customize the top cover to put some vent holes. Rack mount bracket and a U-shape handle that commonly visible in most rack mount chassis are also included in the package. Sliding rails for easy and convenient usage of the product, riser card for peripheral connection and a universal I/O cover are all optional. This 19” 1U rack mount can function as IPC server, PBX server, and firewall.

Specifications

Accessories

Mini ITX MB D525	PCI Riser Card	2 Slots PCI Riser Card
PCI-E Riser Card	2x3.5" HDD Cage	5cm Twin FAN
Car Adaptor	DC POWER KITS	80W AC Adaptor
120W AC Adaptor	Stand Holdetr	Slim Optical Drive
SATA ODD Cable	Rack Mount	Wall Mount
