Specifications
|
Model NO.
|
BP-25U2
|
|
Form Factor
|
1 x Half 5.25 Bay for 2.5 HDD x 2
|
|
Dimensions(mm)
|
140(L) x 72(W) x 40(H)mm
|
|
Interface
|

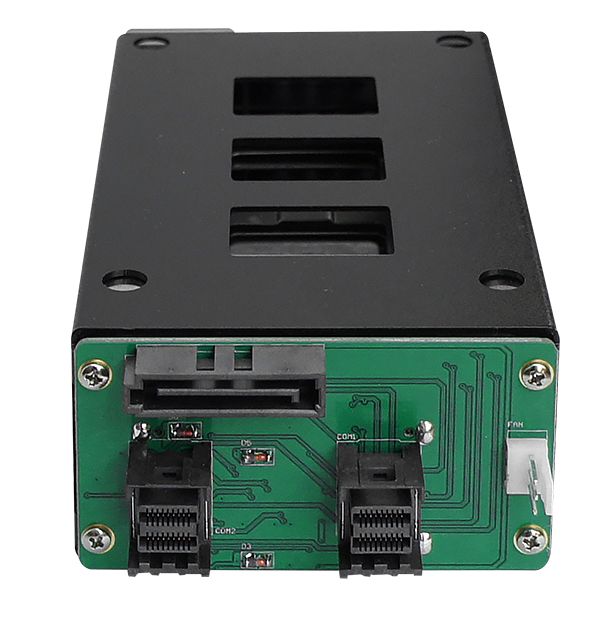

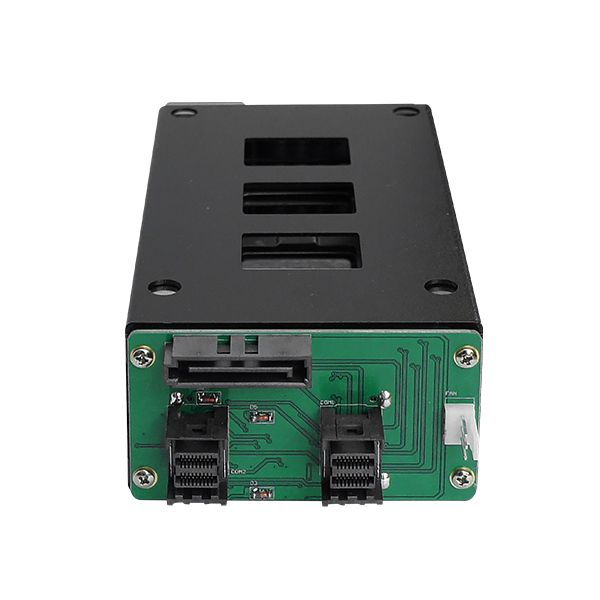

Mini SAS SFF-8643 port x 2
|
|
Power Connector
|
SATA 15pin Power Connector x1
|
|
Hot Swap
|
Support Plug & Play
|
|
Support RAID
|
N/A
|
|
Transfer Rate
|
Up to 32Gbps(depending on HDD speed)
|
|
Disk Type
|
2.5" NVMe SSD with U.2 Spec (Upto 15mm)
|
|
Support Disks
|
2.5" NVMe SSD with U.2 Spec SDD x2
|
|
Cooling Fan
|
N/A
|
| Options |

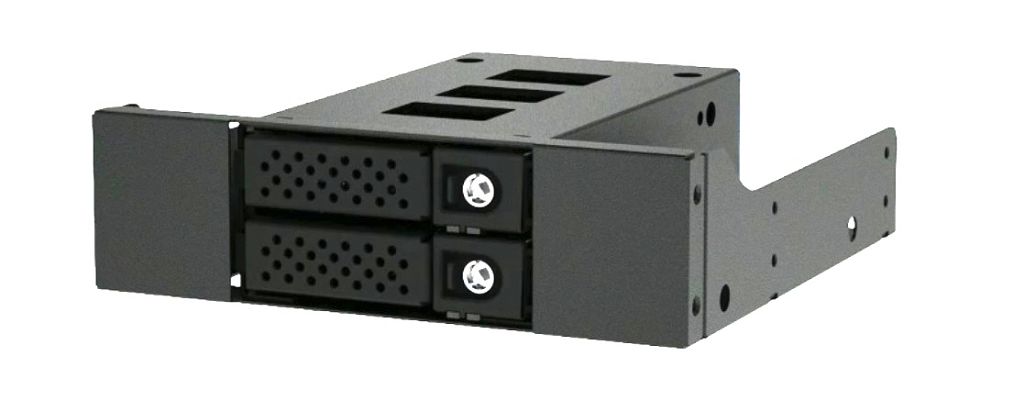

5.25" Bracket |
|
Ordering Information
|
without Bracket : BP-25U2
with Bracket : BP-25U2B
|

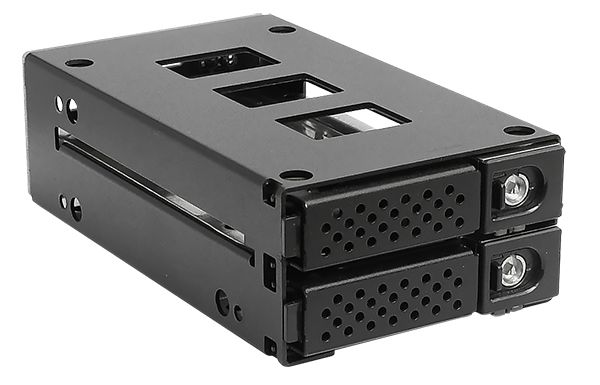

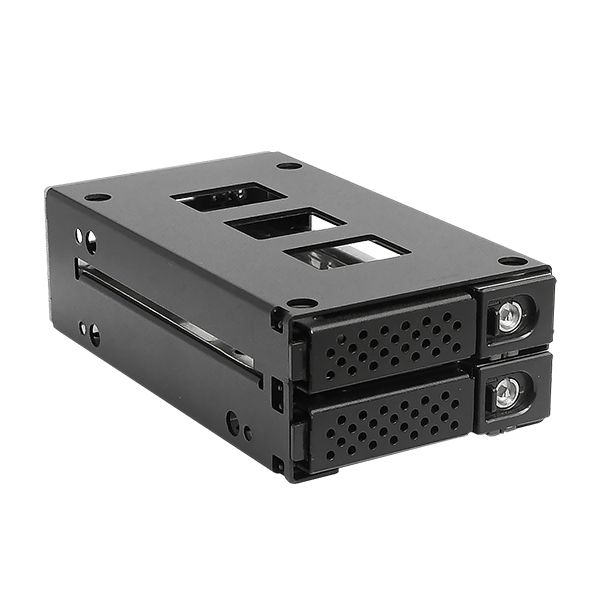

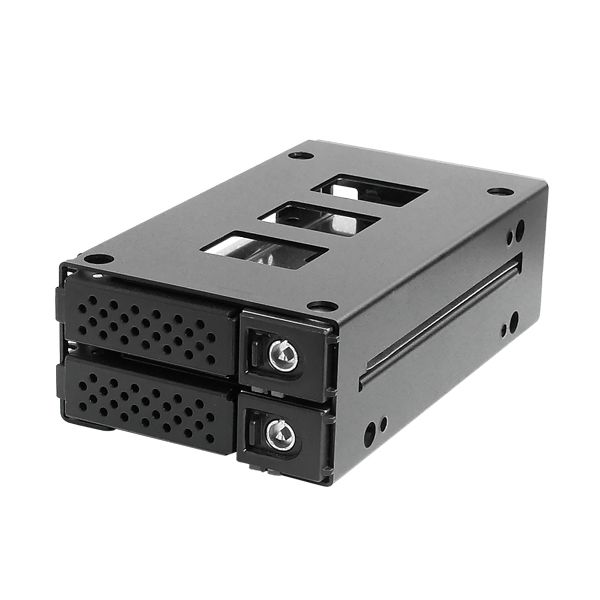

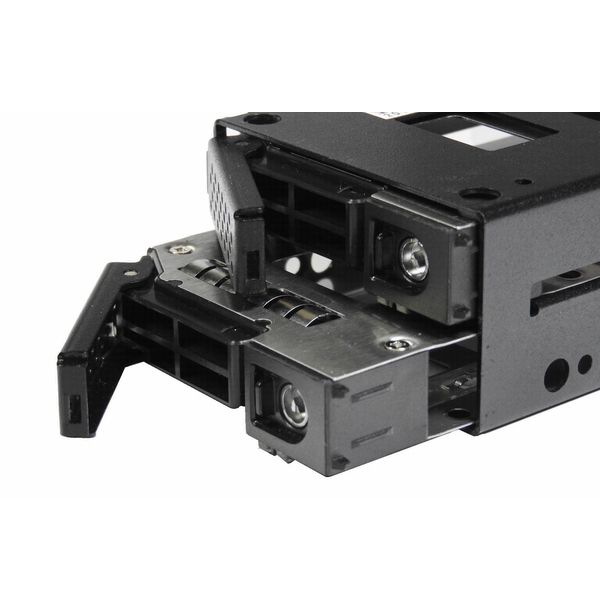

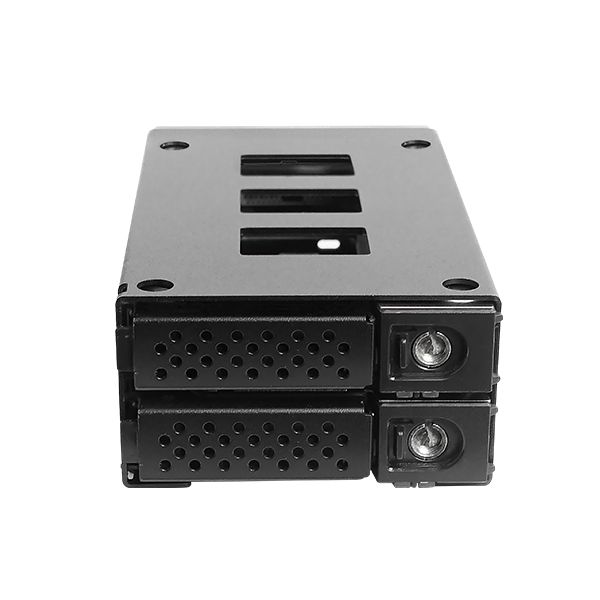

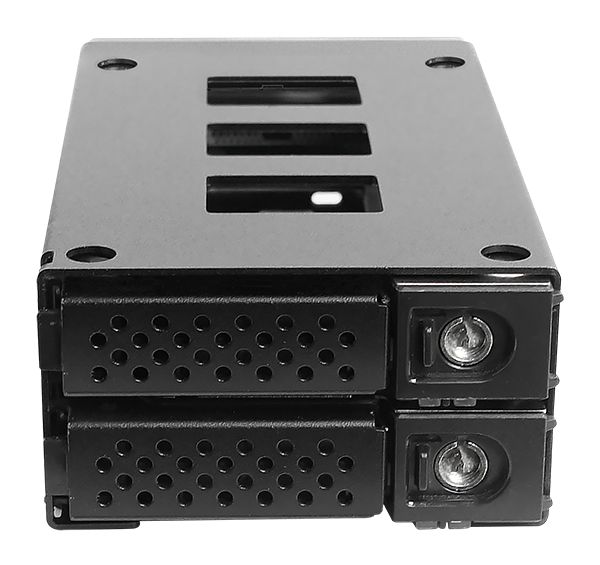

Images
