GA161 - 1U Rackmount Industrial Computer Case

GA161

Add to compare

Introduction

GA161 is 1U Server Case with size 250(D) x 430(W) x 44.45(H) makes it slim and light. The chassis is designed for 1U Rack Mount of Mini-ITX form factor.

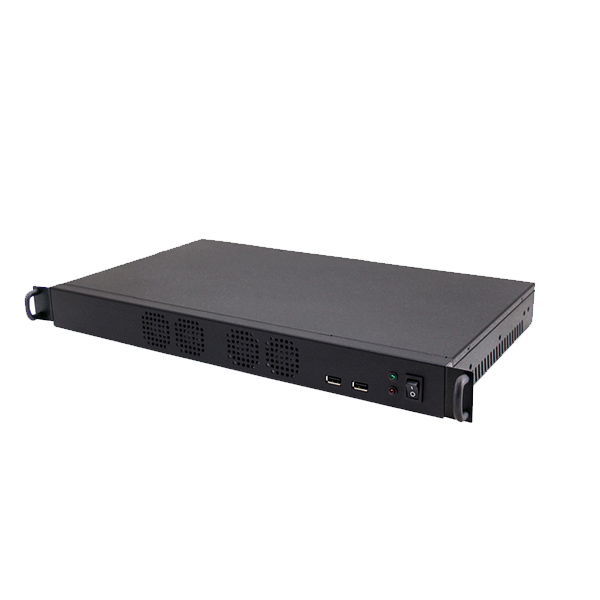

There is a twin fan on the front, ventilation hole on top cover to have a great radiation. The applications are mainly on IPC Server,Fire Wall, PBX, Clouding and etc.

Specifications

Model	GA161
Form Factor	Mini-ITX Case (1U 19" Rack Mount)
M/B Type	※MB Compatible List※
Chassis Dimensions	250(D) x 430(W) x 44.45(H)mm = 4.78L
Drive Bays	Flexible Combination as state form below
Front	2 x USB(2.0) , Power SW , Power/HDD LED
Power supply	FlexATX 180W (CUL/TUV/ PSE/CB/CE/FCC, ErP, Active PFC)
PCI Slot	2 x Standard PCI or PCI-E Slot
System Fan	2 x 40 x 40 x 20mm Twin Fan (Front)
Packing	1pc/5.00kgs/5.50kgs/1.25'
Options	Riser Card . Vent Holes on Top Cover
Applications	IPC Server,Fire Wall, IPBX,Rack Mount

Storage Choices	Slim ODD	3.5" HDD	2.5" HDD	3.5" Exposed	Wifi Hole	PCI	COM Hole	Remarks
1.	-	-	1	-	-	2	-	Card length must be less 140mm
2.	-	-	2	-	-	1	-	-
3.	-	1	-	-	-	-	-	-

Accessories

Mini ITX MB D525	PCI Riser Card	2 Slots PCI Riser Card

PCI-E Riser Card	2x3.5" HDD Cage	5cm Twin FAN

Car Adaptor	DC POWER KITS	80W AC Adaptor

120W AC Adaptor	Stand Holdetr	Slim Optical Drive

SATA ODD Cable	Rack Mount	Wall Mount
